Single-phase or three-phase NB-IoT power meter
Code 01350-4050-00 and 01350-4053-00

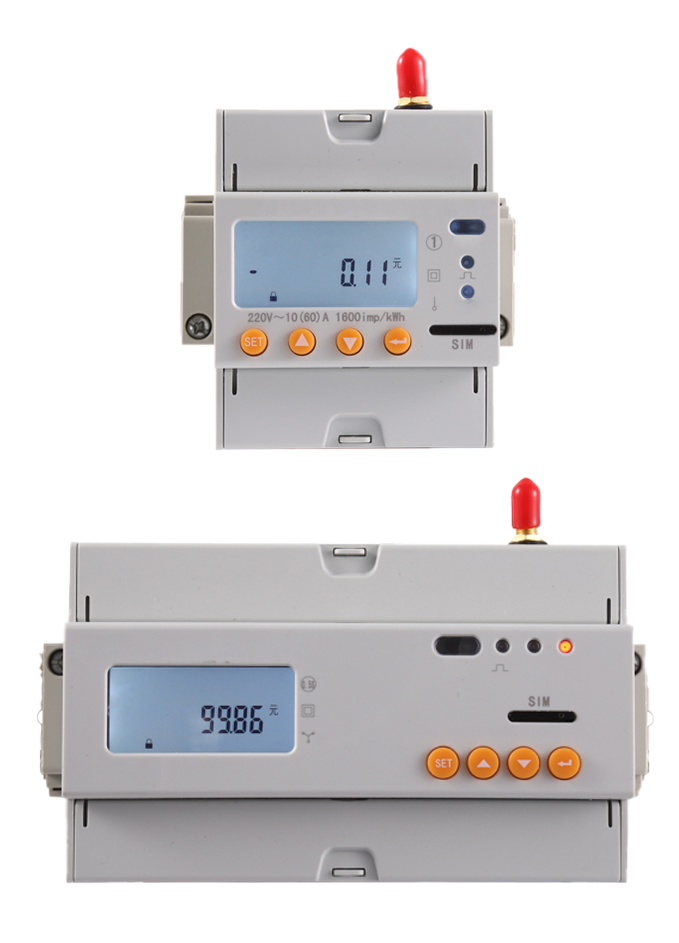

The MyPM-01S and MyPM-03S are power meters that can be used in projects that involve monitoring the electrical energy consumed by a system and sending the data, via M2M NB-IoT wireless connectivity, to cloud platforms capable of analyze and aggregate them.
Equipped with a disconnector, they are capable of interrupting electricity; useful feature if you use a Pay per Use (prepaid) energy supply service.
- Power supply and DIN rail installation.
- Equipped with displays to check the readings and set parameters in real time.
- Data visualization on Contact Pro IoT in real time. Transmission frequency can be set based on the activated NB-IoT plan.
Contact the NEXETA team for more details.
Technical Specifications MyPM-01S
Nominal voltage [Vn]: 110~230 Vac
Maximum current [Imax]: 60A
Protocols: NB-IoT (band 20) and 2G (backup)
Accuracy: < 0.5 sec/day
Operating temperature: -25°C ~ 55°C
Dimensions: 72mm x 88mm x 70mm (4 DIN modules)
Technical Specifications MyPM-03S
Nominal voltage [Vn]: 380 Vac (3 x 230 Vac)
Maximum current [Imax]: 3 x 80A
Protocols: NB-IoT (band 20) and 2G (backup)
Accuracy: < 0.5 sec/day
Operating temperature: -25°C ~ 55°C
Dimensions: 238mm x 81mm x 90mm (14 DIN modules)
Commercial Information
MyPM-01S Product Code: 01350-4050-00
MyPM-03S Product Code: 01350-4053-00
Package contents: MyPM, NB-IoT antenna, SIM card extractor, user manual.
Monitor all IoT devices from the Contact Pro IoT platform
Contact Pro IoT is a cloud platform for managing data detected by NEXETA devices. Thanks to the artificial intelligence algorithm, the platform receives, processes and analyzes data in order to evaluate the actions to be taken:
- Predictive Maintenance
- Adaptive Energy Management
- Qualitative data analysis
- Remote programming of parameters
